40A Solar Charge Controller 12V/24V Auto PWM Solar Regulator with Dual USB

controller 24V/12V PWM Auto Solar Charge Controller 5V Output Solar Cell Panel Regulator PV Home With LCD Dual USB

This is a new solar controller. It can fully meet your home photovoltaic system (including home lighting system) requirements. It can recognize 12V and 24V lead acid and gel batteries automatically.

If you want to use another type of battery, you need to set it up. such as lithium battery charging (full protection 12.2V, discharge 9.5V, restart 11.5V).

Features:

Build-in industrial microcontroller.
Big LCD display,all adjustable parameter.
Fully 4-stage PWM charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,overload protection.
Dual mosfet Reverse current protection ,low heat production.
Specifications:

Model: ICharger PWM N1240
Battery Voltage: 12V 24V Auto
Charging Current: 40A
Discharging Current: 10A
Max Solar input: 50V(for 24V battery) 25V(for 12V battery)
Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge: 13.7V(default,adjustable)
Discharge stop: 10.7V(default,adjustable)
Discharge reconnect: 12.6V(default,adjustable)
USB output: 5V/3A
Self-consume: <10mA>
Operating temperature:-35°C~+60°C

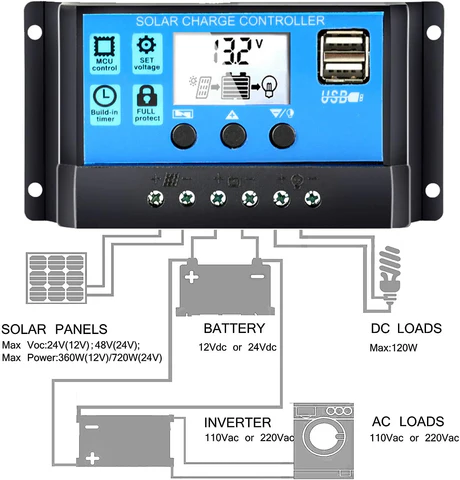

Connection:

Connect the battery to the charge regulator - plus and minus.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the consumer to the charge regulator - plus and minus.
