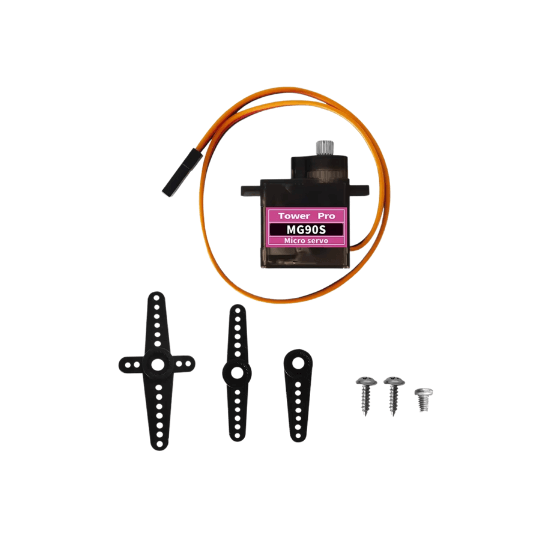

MG90S Metal Gear Servo Motor

MG90S Metal Gear Servo Motor
The MG90S Metal Gear Micro Servo Motor is a reliable, high-performance servo ideal for a variety of applications, including Arduino projects, RC models, drones, robotics, and other DIY electronics. Built with durable metal gears, the MG90S provides smooth and precise 180° movement with excellent torque, making it perfect for projects that require high strength and accuracy.

With a lightweight design, this micro servo motor delivers exceptional power without adding bulk, making it ideal for compact builds. It operates efficiently on 4.8-6.0V, ensuring compatibility with a wide range of electronic setups. Whether you’re building a remote-controlled vehicle, robotic arm, or automated system, the MG90S is a versatile and cost-effective choice.

Specifications:

Torque: 2.2 kg/cm @ 4.8V, 2.5 kg/cm @ 6.0V
Operating Voltage: 4.8-6.0V
Weight: 13.4g
Gear Type: Metal
Rotation Range: 180°
Dimensions: 22.8mm × 12.2mm × 28.5mm
Applications:

Arduino Projects
Remote Control (RC) Models
Drones and UAVs
Robotics Projects
DIY Electronics and Automation
